What this page covers
Why 40-inch jumbo balloons are a different engineering problem · film architecture and metallization · seam welding at jumbo scale · valve integration and custom shape tooling · test reports we hold and do not hold · bulk sourcing FAQ
Oversized inflated foil balloons create two manufacturing problems that do not exist at standard size. The first is mechanical — seam loading scales nonlinearly with balloon dimension, so a 40-inch balloon experiences substantially higher total force at the weld line than a 14-inch balloon at the same internal pressure. The second is dimensional — retail chain distribution centers run automated sortation calibrated to specific inflated dimensions, and batch-to-batch size variation beyond their tolerance causes planogram failures and in-store labor interventions.
This page is written for the buyers who run these programs: retail chain procurement directors, private label category managers, and international holiday novelty distributors. It covers what we control in-house on the jumbo line, what to specify before a high-volume program, and what test reports we can and cannot provide.
1. Sourcing 40-Inch Jumbo Foil Balloons at Volume
Why the Jumbo Category Is Different

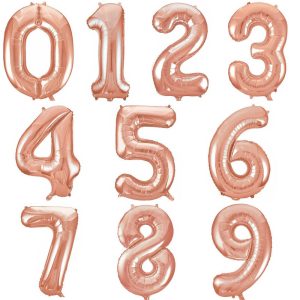

The jumbo foil number balloon category anchors retail chain seasonal displays — Christmas, New Year, Halloween, Valentine's Day, and regional holiday windows. Numbered balloons in the 32–40 inch range serve as the visual anchor for endcap displays and mall atrium installations. Three procurement characteristics define the category:
- Dimensional consistency is a distribution requirement. Automated sortation at retail DCs works against specified inflated dimensions. Batch-to-batch variation beyond the DC's tolerance triggers planogram failures and in-store labor correction.
- Retention must hold across multi-week windows. A seasonal display runs weeks, not days. A balloon that sags at day ten has failed the program.
- Freight economics are volume-driven. Inflated size drives packaging size, which drives container load factor and landed cost per unit.
Structural Mechanics at Jumbo Scale
A 40-inch balloon contains roughly eight times the internal volume of a standard 14-inch number balloon. Internal pressure in an inflated jumbo foil balloon sits in a modest absolute range, but the same pressure acting on a much larger internal surface area produces substantially higher total force loading at the seam structure. That amplified load environment places correspondingly stringent requirements on weld quality, membrane tensile performance, and valve retention.
Volume Private Label Run Discipline
Private label jumbo programs require three operational controls that a commodity balloon order does not:
- Production batch isolation — preventing cross-contamination of brand-specific artwork across customer orders.
- Dedicated production window allocation — guaranteeing shipment against confirmed purchase order dates.
- Documented batch traceability — supporting retail chain quality assurance review before payment authorization.
Specific production window commitments and MOQ thresholds for a private label jumbo program are confirmed at quotation stage against the specific order profile.
2. Film Architecture and Aluminum Deposition
Why Film Architecture Drives Jumbo Performance
The retention performance of a jumbo foil balloon is determined at the film level, not the balloon level. The membrane is a multi-layer composite: biaxially oriented polyester (PET) as the outer structural substrate, laminated to a linear low-density polyethylene (LLDPE) heat-sealant inner layer, with a metallized aluminum coating on the PET surface. That metallization layer provides the gas barrier that determines how long the balloon holds helium.
Physical Vapor Deposition of the Aluminum Layer
The aluminum layer is applied by physical vapor deposition (PVD) in a vacuum chamber. Solid aluminum feedstock is heated to its evaporation temperature. The vapor cloud condenses on the passing polymer film web, forming a continuous reflective layer at a thickness well below the wavelength of visible light.
That layer does two jobs:
- Metallic appearance — the reflective surface that defines the foil balloon category at retail.
- Gas barrier — reduces helium permeation through the membrane by a significant factor compared to uncoated film.
Specific aluminum layer thickness and permeation reduction factors for a given film grade are confirmed at quotation stage. We do not publish a blanket permeation figure across all film configurations.
Multi-Layer Composite Structure
Each layer in the composite performs a distinct function:
Outer Structural Layer (BoPET)
Biaxially oriented PET provides tensile strength, dimensional stability under temperature variation, and resistance to puncture and abrasion during handling and retail display. Specific micron gauge per order confirmed at quotation stage.
Print Substrate
The PET layer accepts rotogravure printing for custom artwork at high resolution with good ink adhesion and color gamut. Line count and color count per design confirmed at quotation stage.
Heat-Sealant Layer (LLDPE)
The LLDPE inner layer provides thermal weldability. Its melting point sits well below the PET degradation threshold, which creates the processing window that makes a reliable hermetic seam possible. Micron gauge per order confirmed at quotation stage.
Metallization Integrity Under Sustained Pressure
The metallization layer is brittle. It sits on a ductile PET substrate. If the aluminum layer is deposited thin enough, it follows the substrate's deformation under internal pressure without cracking. If the layer is too thick, it cracks under sustained pressure and the barrier performance collapses, which shows up as premature helium loss on the display floor. Layer thickness control is a critical inline quality parameter on the metallization line. Exact thickness for a given film grade is confirmed at quotation stage.
3. Seam Engineering at Jumbo Scale
The Seam as the Critical Failure Point
The seam is the most mechanically critical and statistically failure-prone element of any inflated foil balloon. On a 40-inch jumbo balloon, the seam path is long and the total force acting on it from internal pressure is substantially higher than on a standard-size balloon. Seam engineering for jumbo shapes therefore requires precision thermal seam-welding that achieves complete film-to-film polymer fusion across the entire weld width — no void spaces, no stress concentration zones, no micro-fracture initiation sites.
Why a Wider Seal Spec Reduces Field Failure
The seal width for a jumbo balloon is specified wider than what is typical on standard-size balloons. A wider seal provides proportionally more bond area at the same bond quality. That means localized manufacturing variation — a small reduction in effective seal width at one point along the seam — still leaves the residual effective seal above the minimum required to hold under sustained pressure.
The additional film consumed by the wider seal is marginal in cost terms, but the reliability improvement in field performance is disproportionate. That is why seal width is one of the first specification decisions on a jumbo program. Specific seal widths and calibration tolerances for a given order are confirmed at quotation stage.
Multi-Point Automated Temperature Calibration
The core technology enabling consistent seal quality across high-volume jumbo runs is multi-point automated temperature calibration. The sealing die is instrumented with an array of thermocouples distributed across the die surface. A closed-loop controller compares each measured temperature against the programmed setpoint and adjusts zone heating element power in real time to compensate for:
- Thermal gradients across the die surface
- Heat losses at die edges and corners
- Temperature drift from production speed variation
- Ambient temperature fluctuation in the production environment
The result is that every segment of the seal receives consistent thermal energy, which eliminates the cold spots and hot spots that produce incomplete fusion zones and stress concentration sites respectively. Die surface temperature uniformity targets for a given order are confirmed at quotation stage.
Automated Tooling and Alignment Control
The multi-point calibration system runs alongside automated film feeding, positioning, and seam pressing. Removing human variability from those steps removes the primary source of seam quality defects on manual and semi-automatic balloon lines.
Automated film feeding controls overlap alignment between the two film layers at the seam interface. Misalignment beyond a certain threshold at the seal start creates a stress concentration at the seal edge that can initiate a crack under pressure cycling. Automated pressing applies controlled sealing pressure across the full seal width, which holds polymer interdiffusion depth consistent along the seam. Alignment and pressure tolerances for a given order are confirmed at quotation stage.
4. Valve Integration and Custom Shape Tooling
Self-Sealing Valve Architecture
The valve is the second most common failure site after the seam. For a 40-inch jumbo foil number balloon, the valve may see sustained internal pressure loading for multiple weeks, so valve retention integrity is a non-negotiable quality requirement for the program to hold.
The self-sealing valve is a PE flapper assembly captured within the thermal seam during heat-sealing. The flapper is designed to remain closed when internal pressure exceeds external ambient pressure, which creates a positive sealing action against backflow after the inflation nozzle is withdrawn. Inserting the nozzle mechanically opens the flapper against its natural bias; withdrawing the nozzle allows internal pressure to reseat it. That delivers an instant seal with no consumer intervention, no twist-tie, and no secondary sealing operation.
Temperature Resilience Across the Supply Chain
The valve material must hold its sealing behavior across the full temperature range that the balloon encounters between factory and retail display. Warehouse environments can swing from cold loading dock temperatures to warm non-climate-controlled container interiors during ocean freight. The flapper must stay flexible enough at the cold end of that range to reseal reliably, and stiff enough at the warm end to resist creeping out of its sealing bias.
Our valve formulations are selected against that full temperature envelope, and the flapper geometry is optimized to keep the cracking pressure low enough for easy inflation while holding positive seal retention at rest. Valve material grade and geometry for a given order are confirmed at quotation stage.
Valve Flange Capture in the Seam
When the flapper assembly is captured in the thermal seam during production, the weld between valve flange and balloon body film must resist the separation force generated by internal balloon pressure acting on the valve's effective area. On a jumbo balloon at maximum recommended pressure, that force is significant.
Our automated valve insertion tooling positions the flange within the sealing die with tight positional accuracy, so the full flange width is captured inside the seal zone and the weld bond strength sits comfortably above the maximum expected separation force. Flange capture tolerance and pull-force specifications for a given order are confirmed at quotation stage.
Custom Shape Foil Balloon Manufacturing
Beyond the standard number and letter forms, the jumbo line also supports custom shape foil balloon private label runs. Custom shape production adds three operational requirements on top of standard geometries:
- Specialized forming tool fabrication — non-standard geometries require custom dies machined to the shape's specific seam contour.
- Extended process debugging — non-standard shapes require optimization of forming and sealing parameters before production stabilizes.
- Dedicated quality inspection protocols — custom shapes cannot rely on SPC models developed for standard shapes.
Custom shape tooling is fabricated in-house, so tooling cost, tooling lead time, and design adjustment rounds for a specific program are confirmed at quotation stage.
5. Specification Matrix
The following matrix covers the product configurations on the jumbo line. All specifications are stated as baseline parameters under standard production conditions; exact figures for a specific order are confirmed at quotation stage.
Retention windows, seal width, valve pull-force targets, film gauge, and calibration tolerances for a given configuration are all confirmed at quotation stage. We do not publish a blanket figure across configurations.
6. Test Reports: What We Have and What We Do Not
This is the section most OEM pages do not include, and it is the section that matters most if you are sourcing for a regulated retail category.
Test reports we hold:
- EN71 — SGS report number SHTY130500007975-01. Coverage: foil balloon sample, tested for EN71 Part 1 (mechanical and physical), Part 2 (flammability), and Part 3 (migration of certain elements). Whether a specific jumbo foil number balloon SKU is covered by this report or requires a separate test is confirmed at quotation stage. EN71 compliance details.
- RoHS (EU) 2015/863 — SGS report number SHAHG2207652301. Coverage: tested DEGRADING BALLOON sample, ten restricted substance categories. Whether this report extends to a specific jumbo foil number balloon SKU depends on the materials used. Coverage is confirmed at quotation stage. RoHS compliance details.
- PEBA member — Pro Environment Balloon Alliance member. PEBA member guide.
Test reports and certifications we do NOT hold:
- ISO 9001 — not held
- ASTM D3985 — not held
- SGS factory audit reports — not held
- ASTM F963 — not held
- US CPSIA — not held
- California Prop 65 — not held
If your program requires a certification we do not hold, we will tell you directly. We can also arrange third-party testing on your behalf — test scope, lab, timeline, and cost confirmed at quotation stage.
7. Bulk Sourcing FAQ
MOQ depends on balloon configuration, print requirement, and whether custom tooling is needed. It is confirmed at quotation stage against the specific order profile. Multi-SKU programs can sometimes reduce per-SKU minimums by combining production across number configurations — ask about this when you send your parameters.
We do not publish per-unit price ranges on this page, because per-unit cost depends on order volume, film specification, print complexity, packaging, and destination market. Program pricing is quoted at quotation stage against the specific program parameters. Send us your SKU list and volume forecast and we will return a formal quotation.
Lead time depends on order volume, configuration, print requirement, and current production scheduling. It is confirmed at quotation stage against the specific order profile. For peak seasonal windows, tell us the retail floor date up front and we will confirm whether the run is achievable on that timeline.
Yes. Pre-production samples with actual artwork can be produced on the production line. Sample availability, sample type, cost, and turnaround are confirmed at quotation stage against the specific configuration.
We hold EN71 test reports under SGS report number SHTY130500007975-01 (foil balloon sample) and RoHS (EU) 2015/863 test reports under SGS report number SHAHG2207652301 (DEGRADING BALLOON sample). Coverage of a specific jumbo number balloon SKU by these reports is confirmed at quotation stage. We do not hold ISO 9001, ASTM D3985, SGS factory audit reports, ASTM F963, US CPSIA, or California Prop 65 documentation. If you need one of those for your program, we will tell you directly and can arrange third-party testing on your behalf.
Yes. Custom rotogravure printing, custom shape tooling, branded polybag design, UPC/EAN barcode labeling, retail display header card design, and multilingual instruction insert printing are all part of the private label offering on this line. Artwork confidentiality protocols are available on request. Packaging specification, print color count, and destination-market labeling requirements are confirmed at quotation stage.
We support FOB, CIF, and DDP terms for qualified accounts. Container load optimization, export packaging, palletization, and shipping documentation support are part of the standard flow. Specific Incoterms, packaging format, and customs documentation requirements for a given program are confirmed at quotation stage. For shipping and customs background, see our manufacturer shipping FAQ.
Retention depends on film grade, seam quality, valve performance, and ambient conditions. Retention windows for a given configuration and display environment — indoor and outdoor — are confirmed at quotation stage under standard test conditions. Extended-retention configurations are available on request.
Yes. The self-sealing valve design allows controlled deflation using a standard drinking straw inserted through the valve. Once deflated, the balloon can be folded and stored in a cool, dry environment for future re-inflation. Reuse cycle counts depend on handling conditions and are confirmed at quotation stage for a given configuration. For deflation and storage guidance, see our guide on how to deflate and reuse foil Mylar balloons.
Quality control on the jumbo line runs at three levels: incoming film roll inspection for thickness uniformity and metallization adhesion; in-process seam weld and valve insertion verification against the run specification; and final batch inspection with recorded SPC data. Batch-level QC records and inspection protocols for a specific order are confirmed at quotation stage against the buyer's QC profile.
Send Your Jumbo Program Parameters
Send balloon configuration, total unit volume, print requirements, packaging format, target delivery window, destination market, and which test reports your program requires. We will confirm what we can support and return a quotation.
Email xia@foilballoon.cnResponse within one business day · Sample service available
About FAIR — Kunshan Fair Craft Products Co., Ltd.
FAIR is a balloon manufacturer based in Kunshan, China, producing jumbo foil number balloons, custom shaped foil balloons, PLA-based biodegradable foil balloons, and custom printed balloon products for global brands, retail chains, event companies, and wholesale novelty distributors. For inquiries: xia@foilballoon.cn
